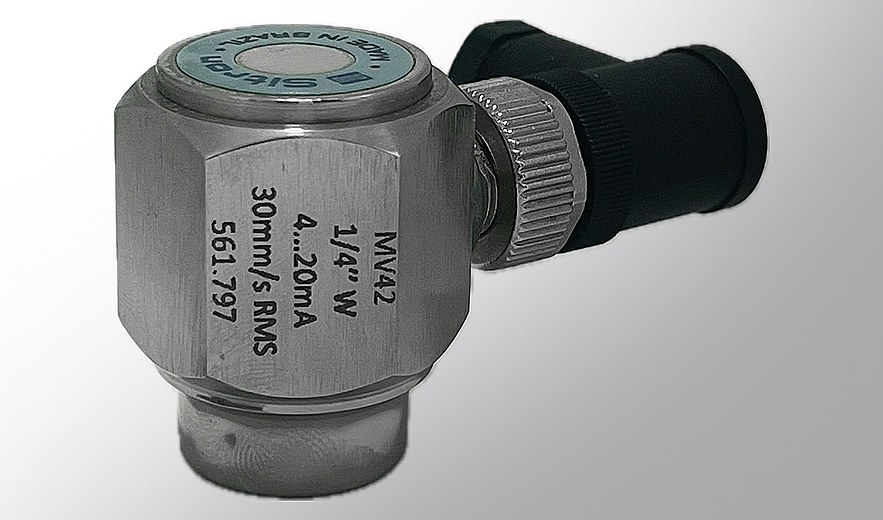

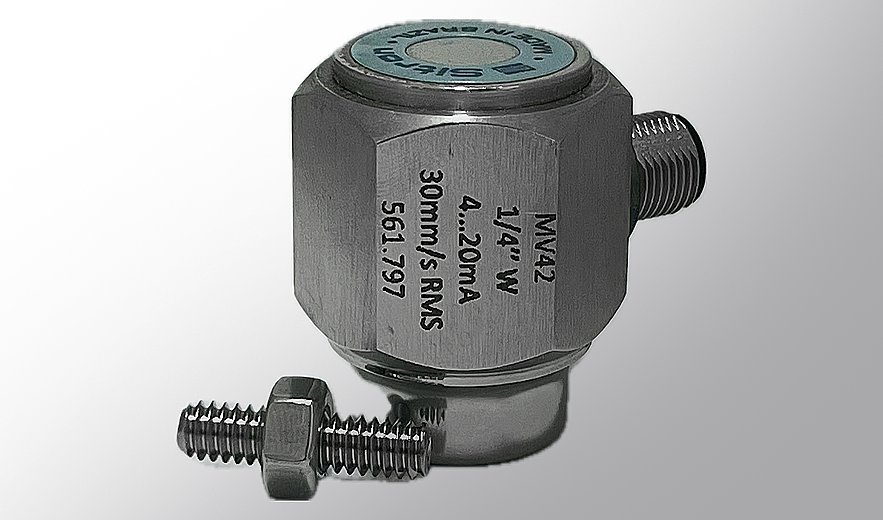

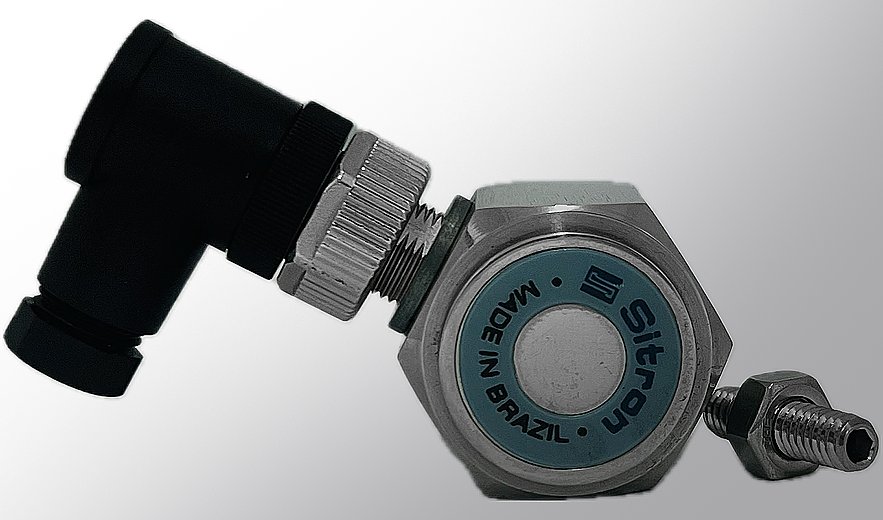

MV42 – Mini Version (M12 Connector and 0…2” RMS)
The MV42 is a compact and robust vibration sensor used to monitor and detect misalignment or imbalance in motors, fans, centrifuges, compressors, generators and other machinery. Widely used in industrial applications, the MV42 is a key part of any plant’s preventive maintenance plan.
The sensor measures the mechanical vibration speed in a range of 10, 25 and 50 mm/s rms on non-rotating surface and converts it to signal 4…20mA (2-wire) proportional with great precision and stability even when applied to large equipment. The MV42 can be installed with a threaded fixed base or magnetic base (recommended when you need to remove or easily move the sensor to a different mounting location).
Power Supply: 10…30 Vdc
Consumption: max. 22mA
Output: 4…20 mA (2 wires)
Isolation: 500Vrms between circuit and housing
Accuracy / Stability / Linearity: ± 0.5% FS
Range: 10, 25 and 50 mm / s RMS
Electrical Connection: M12 connector
Body Material: Stainless Steel 316
Protection: Polarity Reversal / Electromagnetic Interference / Electrical Surges
Operating Temperature: -10 to 70 °C
Rating: IP67 (IEC 60529)
- Ultra Compact Design
- IP66 or IP68 rated
- Economical and durable
- Easy to Install
- Identify misalignment and imbalance in all types of rotating machinery such as fans, pumps, motors and other industrial machines.
- Calibration Certificate
- Certificate of Materials
