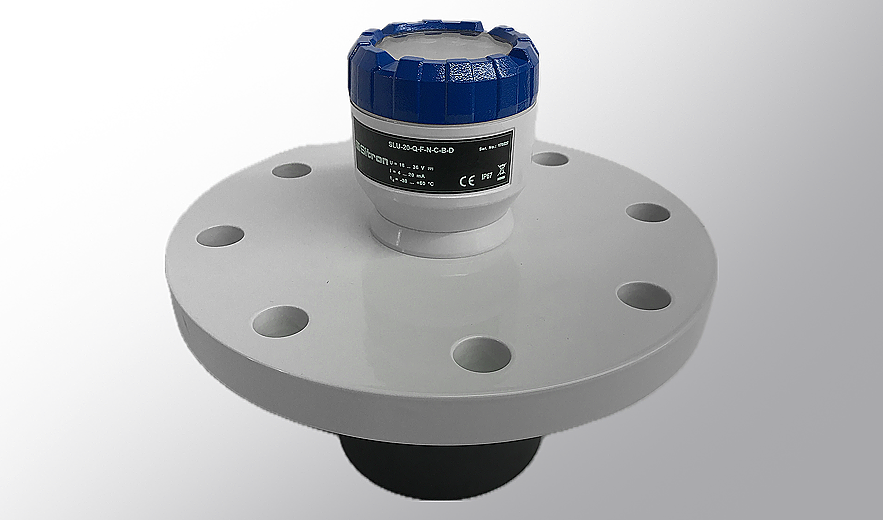

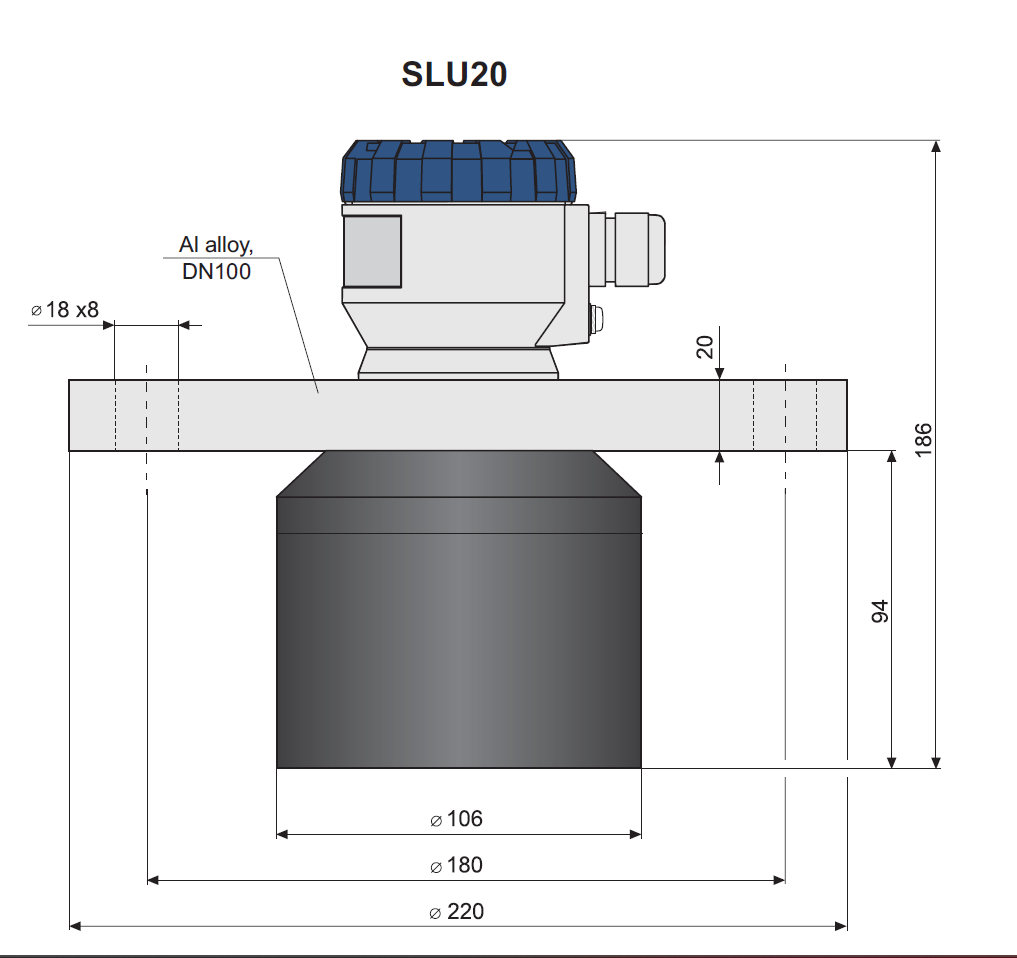

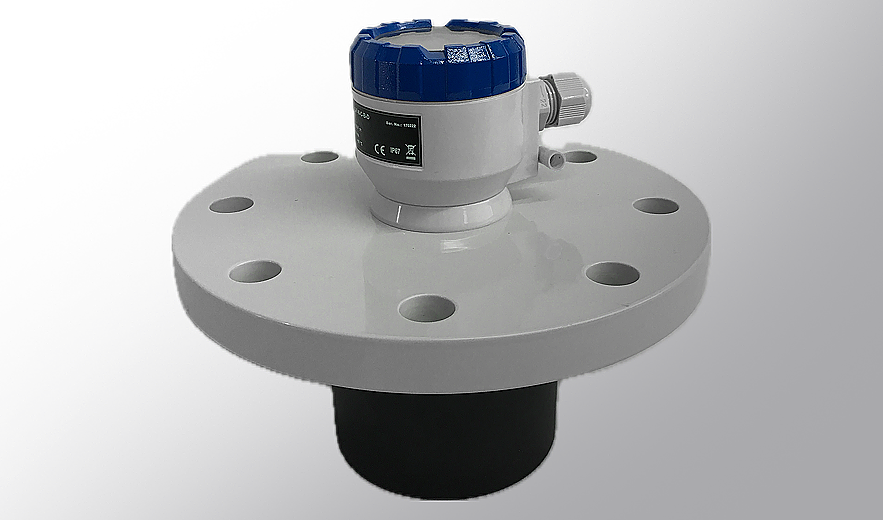

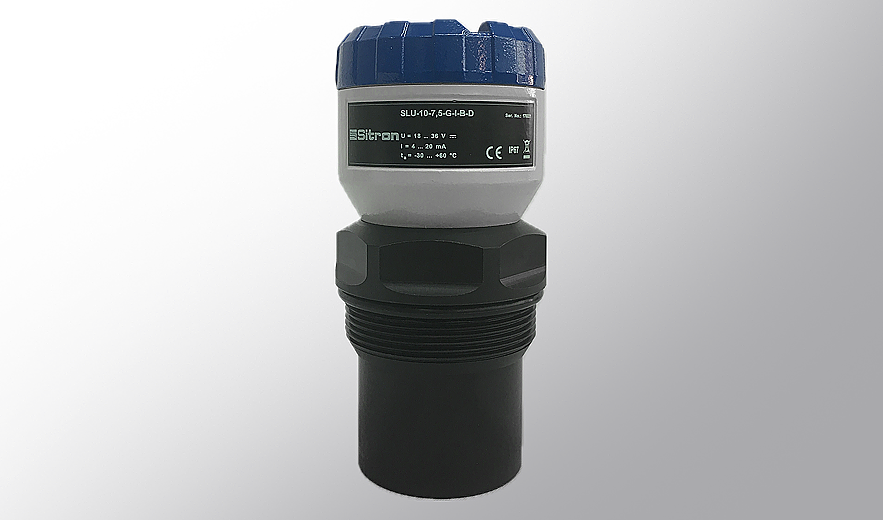

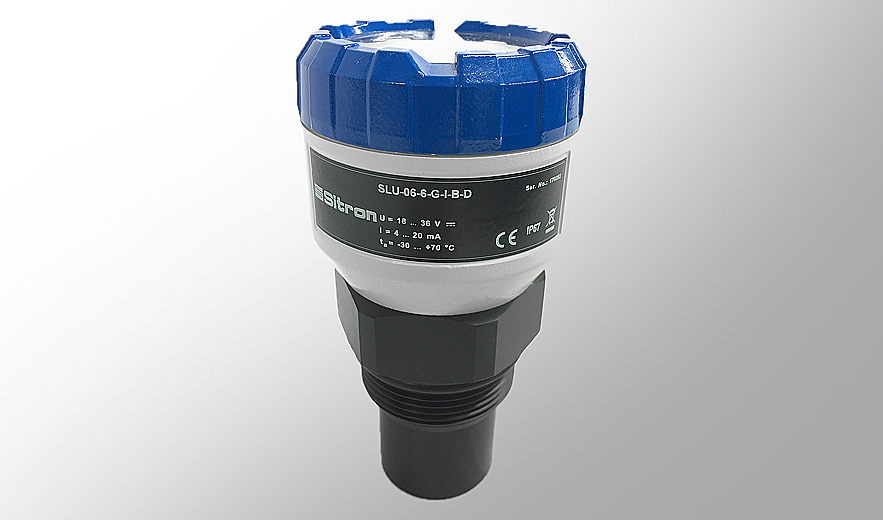

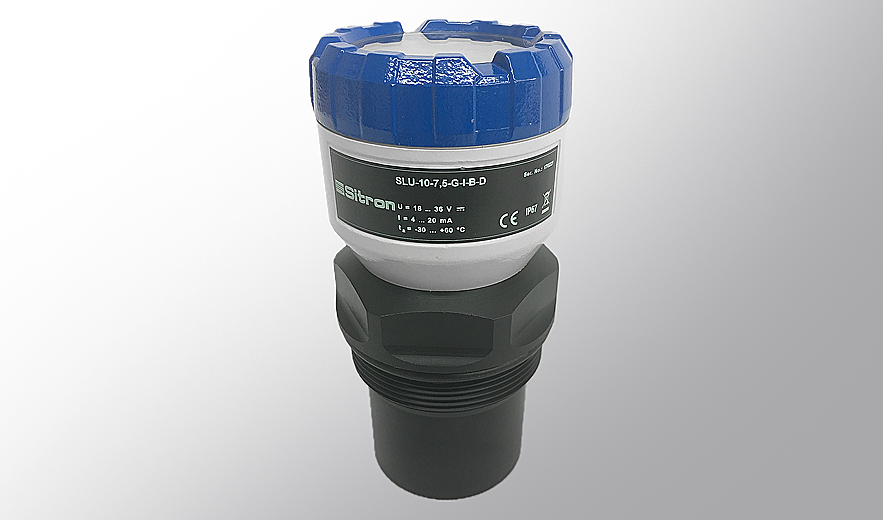

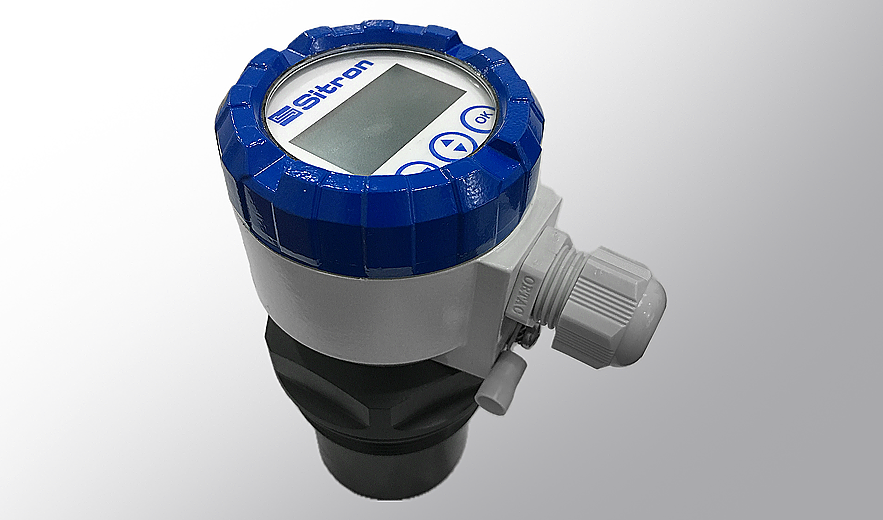

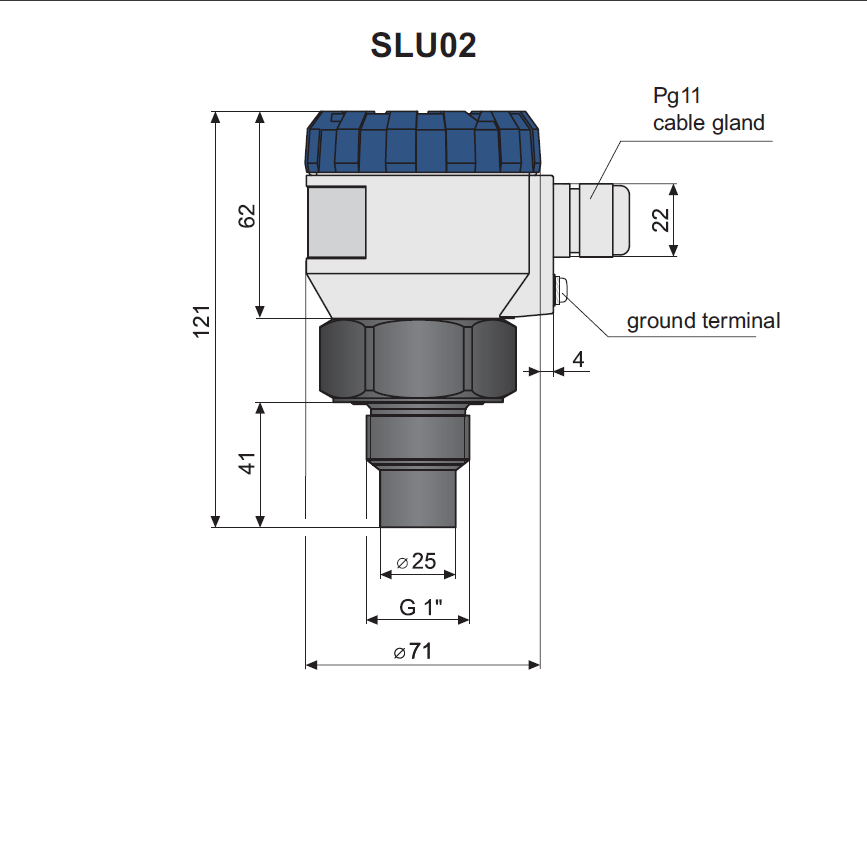

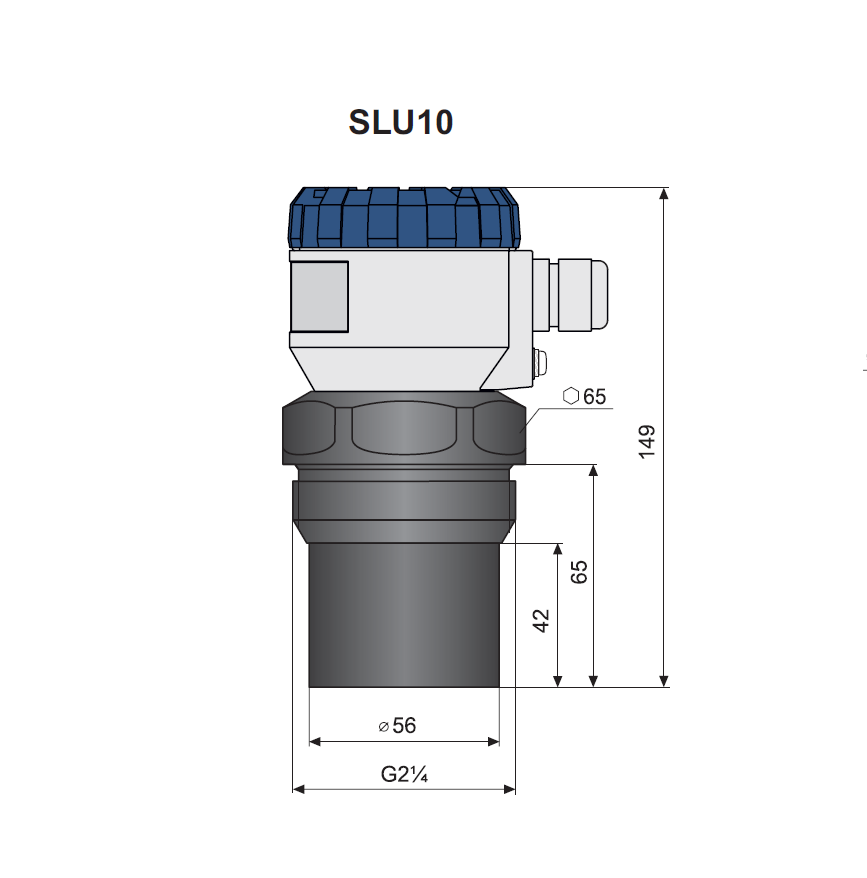

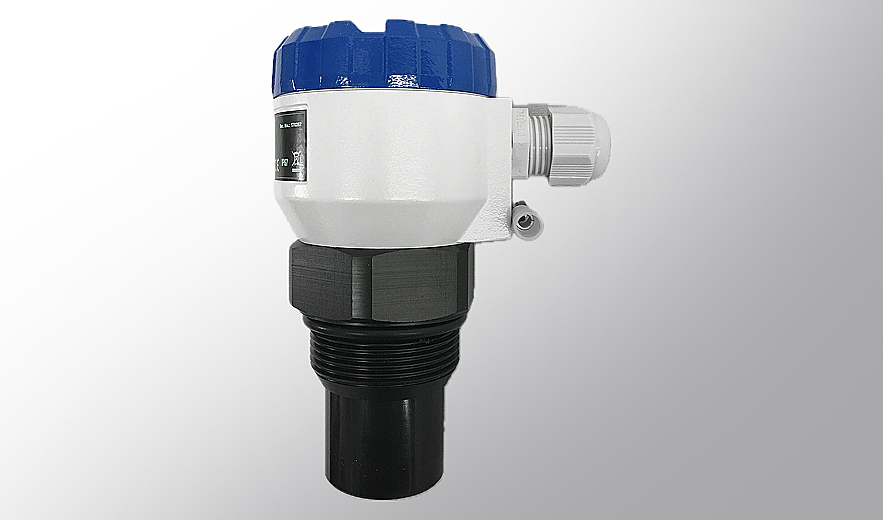

SLU – Ultrasonic Level Transmmiter w/ Housing

The SLU Ultrasonic Level Meters are compact measurement devices containing an ultrasonic transmitter and an electronic module. The transducer generates ultrasonic pulses that travel at the speed of sound toward the target medium. These sound waves are reflected off the surface of the medium and are received by the transducer system. The “time of flight” between the transducer and the surface and then back to the transducer is measured. Based on the time period during which the individual pulses spread towards the level and back, this period is averaged by the electronics (that also performs temperature compensation) and subsequently are converted to an output current 4…20mA with HART protocol or output RS-485 Modbus and the measured value is displayed on the display. The central processor evaluates and blocks out interfering signals, performs temperature compensation, compares
the cleaned received signal with the false reflection map (e.g. from mixers, ladders, reinforcement etc.) and selects a suitable reflection (echo).

The SLU Ultrasonic Level Meters are suitable for continuous non-contact level measurement of liquids (water solutions, waste-water sewage), mash and paste materials (sediments, sticky mediums, resins etc.) in closed or open vessels, sumps, reservoirs and open channels (volume of flow in Parshall flumes). In the case of bulk-solid materials, the measuring range is reduced, but can be amplified or compensated by using the horn accessory.
