SVT42 – Vibration and Temperature Transmitter
The SVT42 is a compact and robust vibration and temperature sensor used to monitor and detect both overheating conditions and misalignment or imbalance in motors, fans, centrifuges, compressors, generators and other machinery. Widely used in industrial applications, the vibration sensor is a key part of any plant’s preventive maintenance plan.
The SVT42 model offers 2 independent 4…20mA outputs (one for Vibration and one for Temperature) to monitor both vibration and temperature of any fixed rotating machinery. An explosion proof (Exd) housing can be integrated for applications in hazardous areas.
The sensor measures the mechanical vibration speed in a range of 10,20, 30, 40 and 50 mm/s (RMS) on non-rotating surface and converts it to a 4…20mA (2-wire) proportional with great precision and stability even when applied to large equipment. For temperature, the measuring range is typically between 0 and 100 degrees Celsius.
Power Supply: 12…30 Vdc
Consumption: 22mA
Output: 4…20mA (to vibration) + 4…20mA (to temperature)
SVT42 Temperature Range: 0~100°C
Load max: (Vin – 7,6) / 25mA
Isolation: 500Vrms, between circuit and enclosure
Accuracy: ± 0.5% F.S.
Range: 10, 20, 30, 40, 50mm/s RMS
Frequency Range: 40…1000Hz
Sensor Type: 1 axis accelerometer

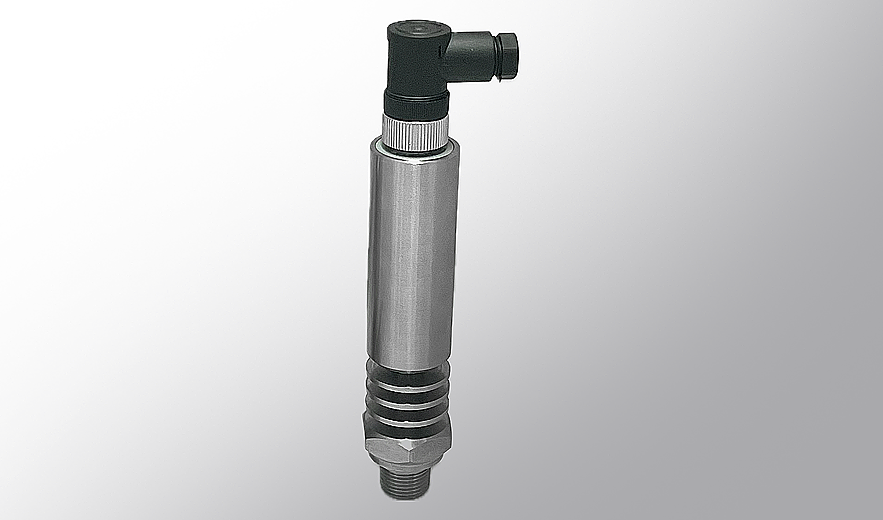

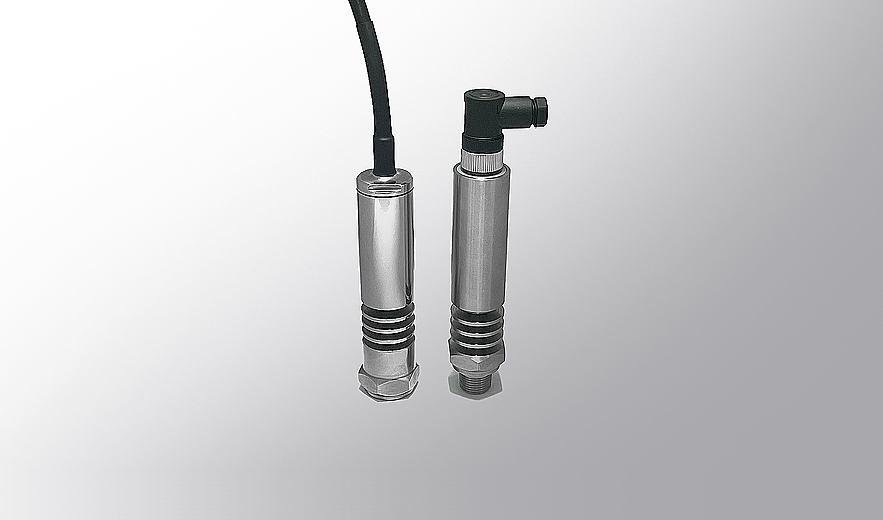

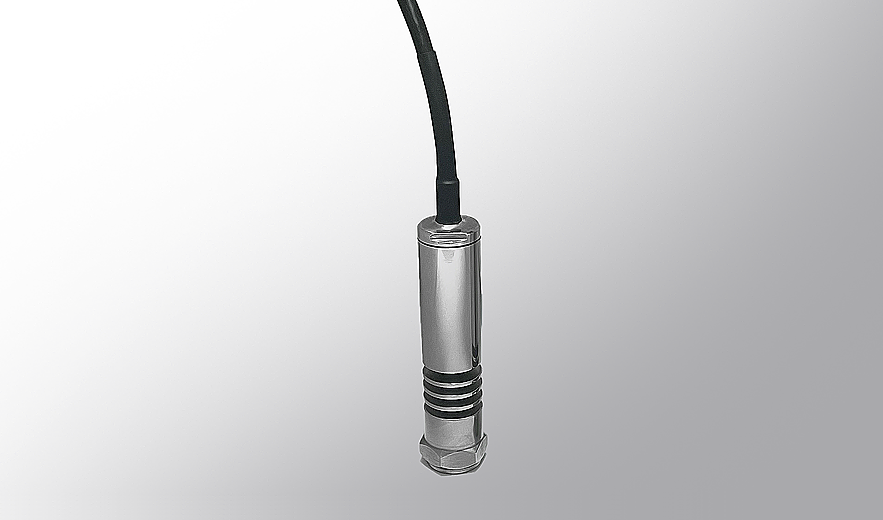

Electrical Connection: M12 connector / Polyethylene cable / wire leads
Body Material: 316 SS
Operating Temp.: -10 to 100°C
Protection: IP65/IP66/IP67
Housing Specifications:
Approvals: FM: Class I Div I Groups B,C,D Class II,III Div I E, F,G
IECEx: II2 G Exd II C Gb II 2 D Ex tb IIIC Db
Material: Aluminum painted (Blue)
Electrical Connection: 3/4″ NPT
Protection: IP66
- 2 Solutions in one part (Vibration + Temperature)
- No moving parts
- Extremely durable
- Easy to install
- Factory Calibrated Range
- Various mounting configurations
- Low Cost and Zero Maintenance
- All types of rotating machinery such as fans, pumps, motors and other industrial machines.
- Calibration Certificate
- Certificate of Materials
