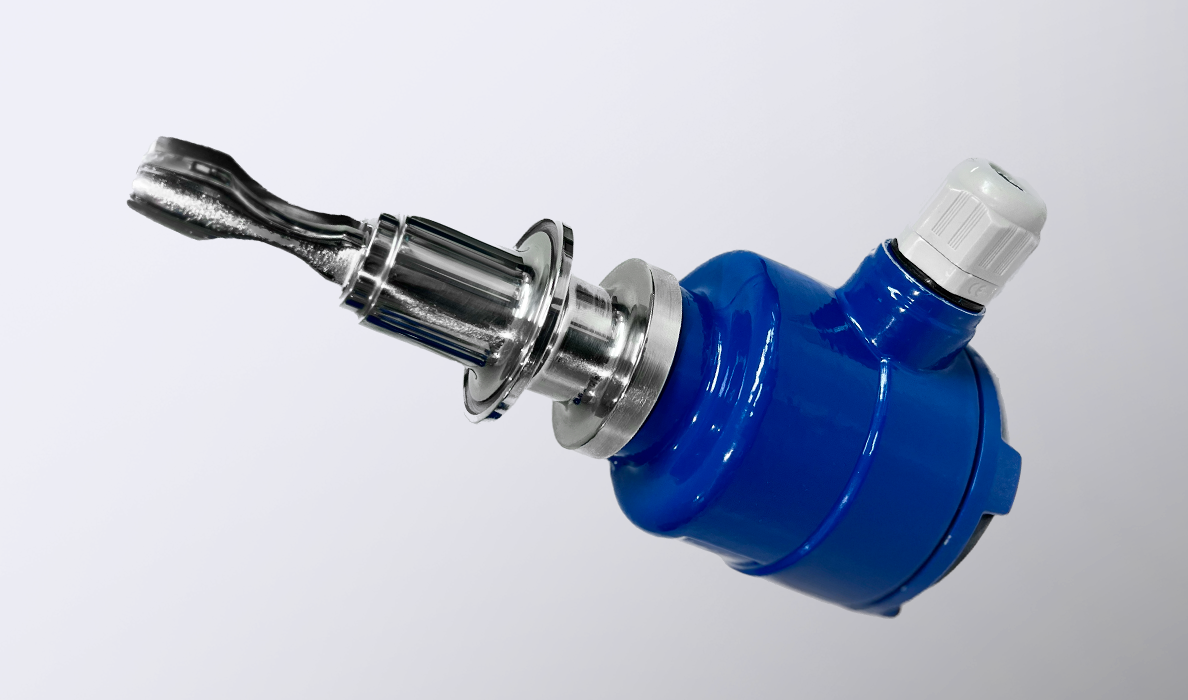

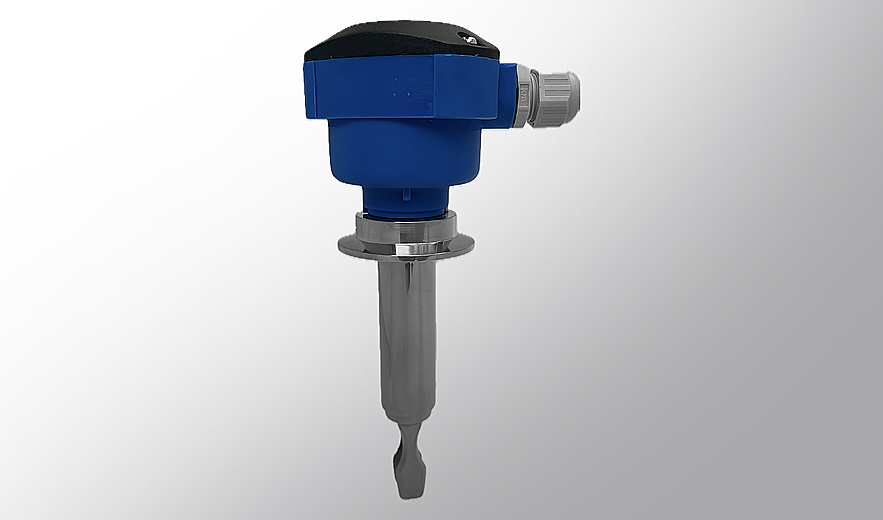

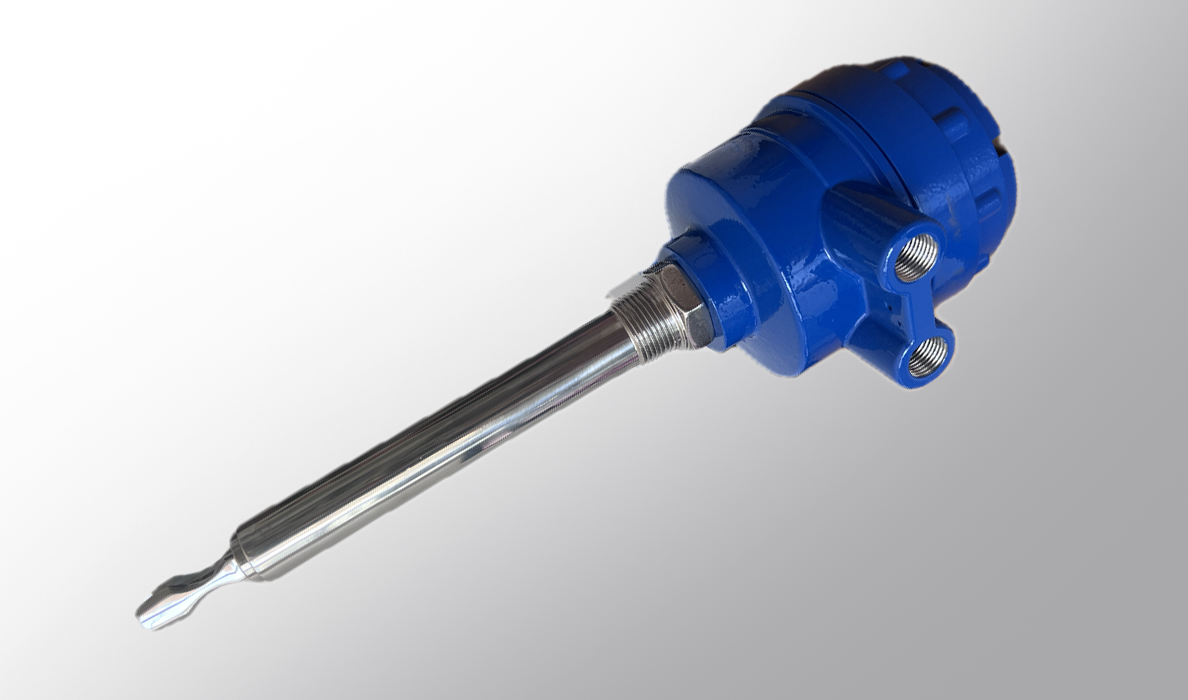

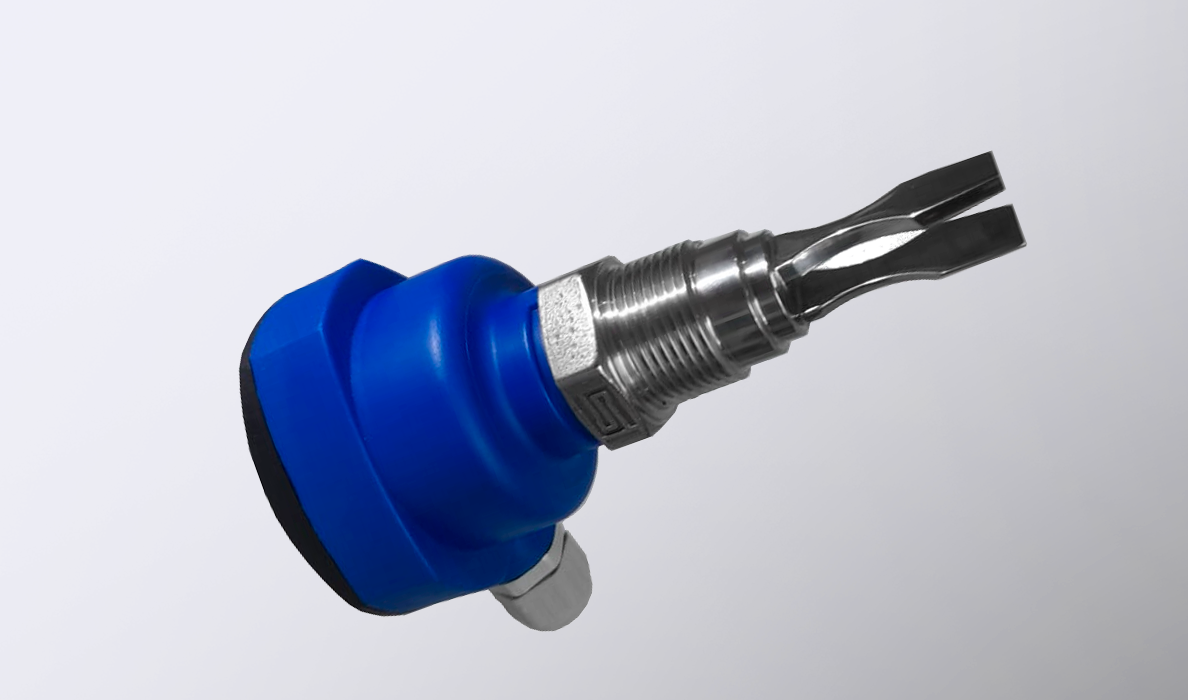

VTKR – Liquid Level Switch w/ Nylon & Aluminum Housing

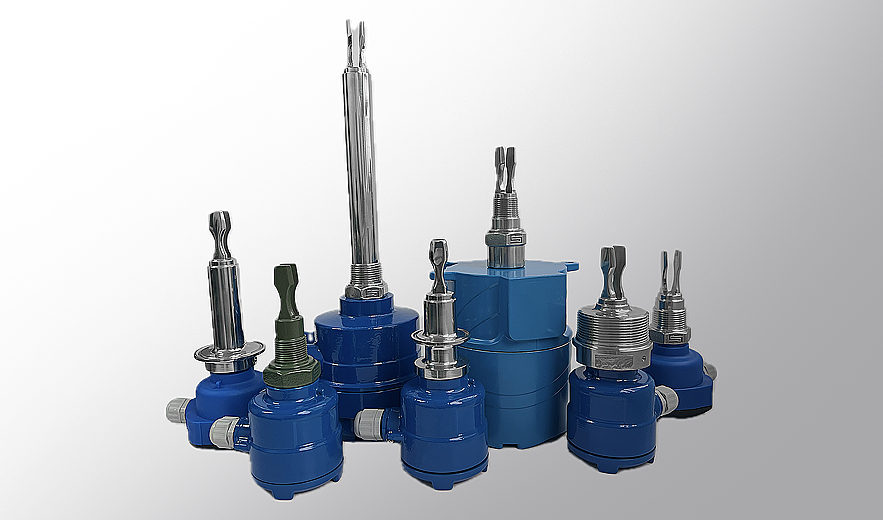

Sitron ́s VTK series of vibrating tuning forks are an ideal solution for many point level detection applications because they are un-affected by either the dielectric or the conductivity of the medium. When the tuning fork is submerged in the medium the frequency at which at which it vibrates changes. This change is detected by the unit’s electronics and is converted into a switch output, either relay (SPDT). Users around the world have come to depend on this technology as one that is easy to apply and very reliable. All models are made in 316 Stainless Steel, can be ordered with a great variety of threaded, flange, or hygienic fittings, and are available with Halar coating.
Application: Level Switch for Liquids
Power Supply: 18…36Vdc & 85…264Vac (50/60 Hz)
Consumption: DC:<20mA / AC: <35mA

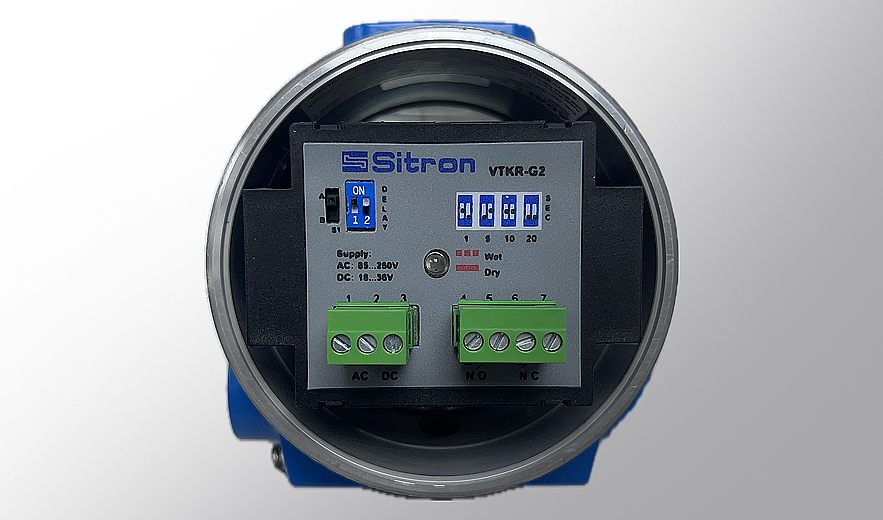

Output: Relay (SPDT), 5A-250Vac
Housing: N1 Nylon Fiberglass / G1 – Aluminum / G2 – Aluminum
Switching Point: 13 mm from tip
Time Delay: 1 to 20 seconds.
Medium Viscosity: 0.5…5000 cSt
Electrical Connection: 1/2” NPT, M12, (others)

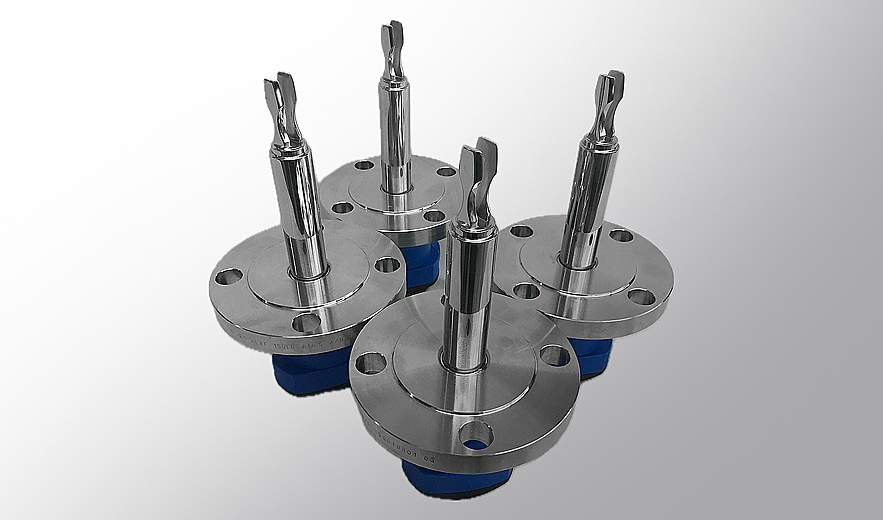

Process Connections: BSP, NPT, Sanitary or Flanged
Body Material: 316 SS
Operating Temp.: -14 to 176o F (-10 to 80oC) / Extended Neck to 212°F (100°C)
Max Pressure: 50 Bar
Class Protection: N1 – IP65 / G1 – IP66 / G2 – IP66
- All 316SS body and wetted parts (Halar coating available)
- Unaffected by variations in conductivity or dieletric constant
- IP65 class protection (IEC 60529)
- Output SPDT Relay
- Customized length options to best suit your application
- Available in Threaded, Sanitary and Flanged connections
- Food and Beverage Industry
- Water Treatment Plants
- Petro-Chemical Industry
- Pharmaceutical Industry
- Pulp and Paper Manufacturers
Factory Callibration Certificate
Material Certificate
Certificate of Origin
