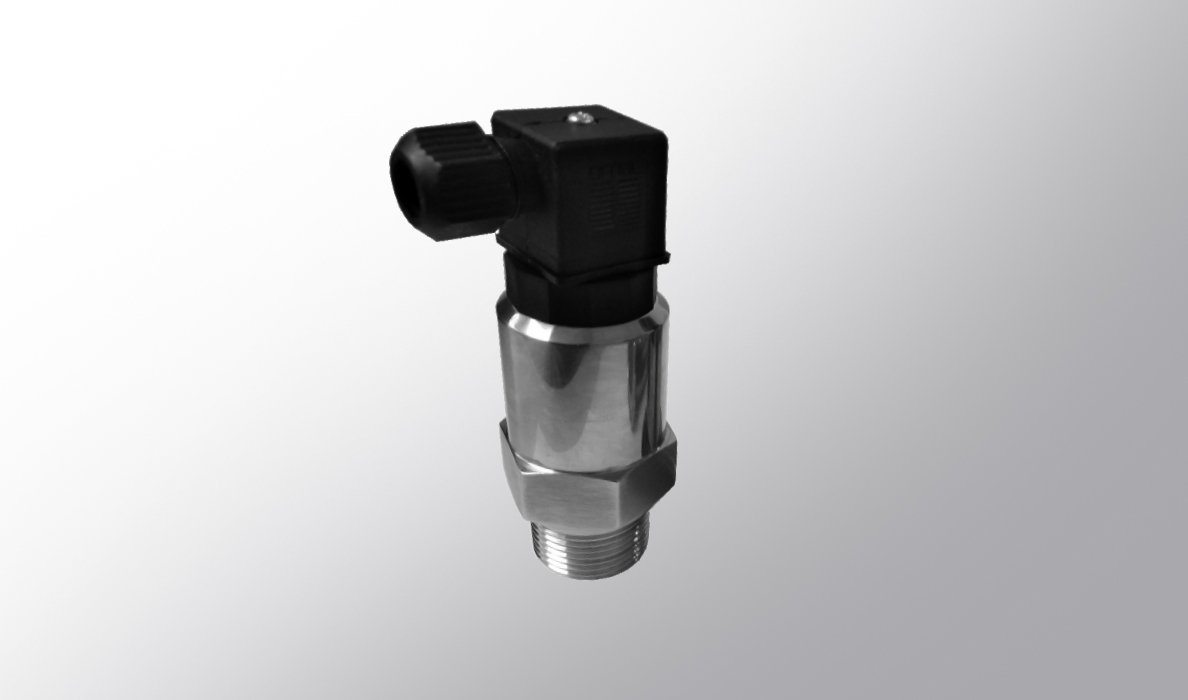

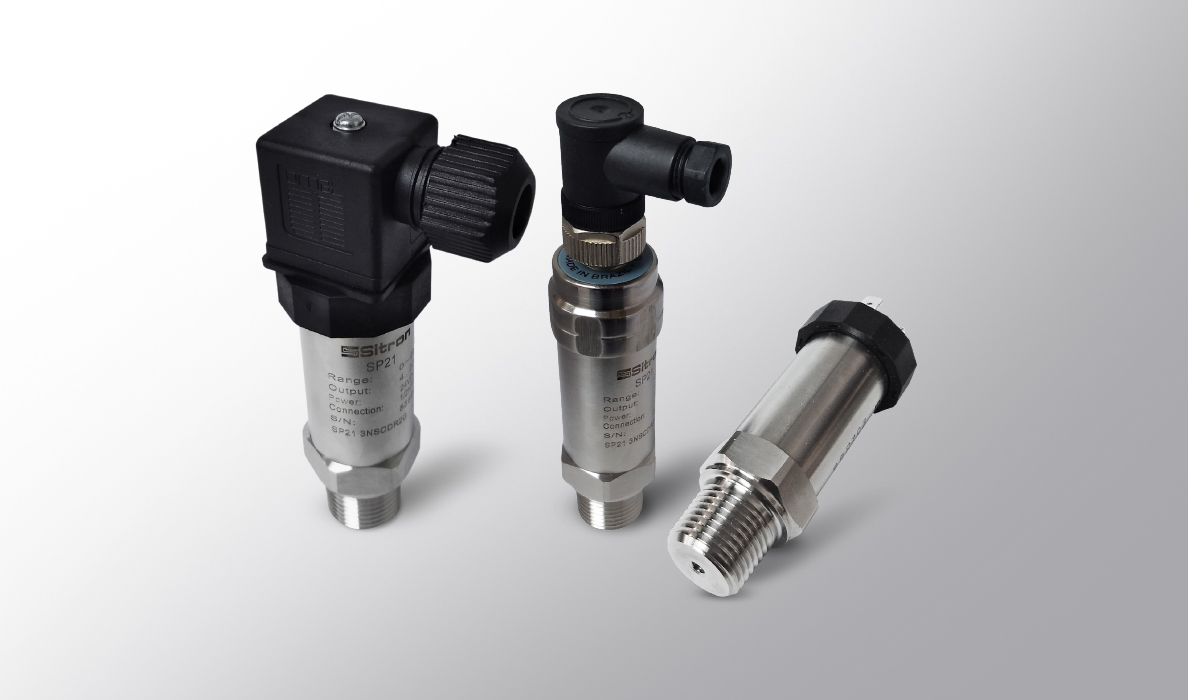

SP21 – Economical Transmitter (mA and Voltage outputs)
The SP21 pressure transmitters are designed to measure the pressure of liquids and gases. They feature MEMS (Micro-Electro-Mechanical Systems) Technology, 316SS piezoresistive silicon chips, polarity protection and excellent long term stability. These highly reliable sensors are available with Gauge or Absolute pressure ranges, a variety of signal outputs (0.5 to 4.5Volts, 1 to 5Volts, 0 to 5Volts or 4 to 20mA), are fully temperature compensated and can be powered from 8 to 30Vdc.
Technology:
As pressure increases within a vessel, a displaced electrical charge accumulates on the opposing surface of the piezoresistive cell. This generates an output signal, which is converted to a standardized Voltage or 4-20-mA (2 wire) signal that is directly proportional to the pressure applied. Standard connections are 1/4”, 1/2” (BSP or NPT), but separate adaptors can be ordered to conform to individual process requirements.
Application: Pressure measurement for liquid and gas
Power Supply: 8…30Vdc
Current Consumption: Max.: 22mA
Output: 4…20mA (2 wires)
Load Resistance (Zin): 500Ω
Precision / Stability / Linearity: ± 0.25%
Resolution: 100μA
Type of Sensor: 316 Stainless Steel piezoresistive
Pressure Range: 0.1 to 1000 Bar
Electrical Connection: DIN 43650 Connector
Process Connection: 1/4” BSP or NPT
Body Material: 304 Stainless Steel
Storage Temperature: -40 to +125°C
Operating Temperature: -40 to +120°C
Compensated Temperature: -10 to +70°C
Over Pressure: 3 x F.E.
Vibration: 2g /20 – 500Hz
Protection: Reverse polarity / Electromagnetic Interference
Class Protection: IP65 (NEMA 4)
- MEMS (Micro-Electro-Mechanical Systems) Technology
- 316SS piezoresistive silicon chips
- Polarity protection and excellent long-term stability
- Available with Gauge or Absolute pressure ranges
- A variety of signal outputs (0.5 to 4.5Volts, 1 to 5Volts, 0 to 5Volts or 4 to 20mA)
- Fully temperature compensated and can be powered from 8 to 30Vdc
- Food and Beverage Industry
- Water Treatment Plants
- Petro-Chemical Industry
- Pharmaceutical Industry
- Pulp and Paper Manufacturers
