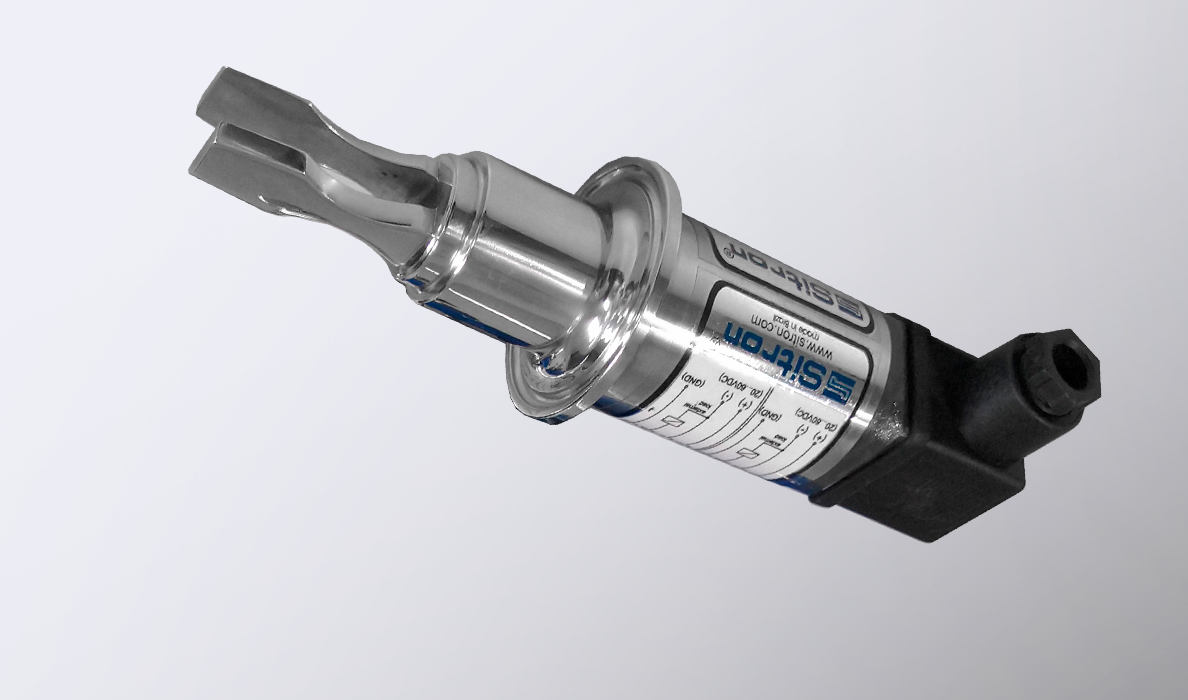

MVTK Tuning Fork Point Level Detection
The MVTK with no housing comes in two versions: The MVTKAC powered by 85 to 264Vac or the MVTKDC, powered by 24Vdc. Both units come with DIN (IP65) or M12 (IP67) electrical connection. Either unit is an ideal solution for point level detection of liquids, regardless of the conductivity or dielectric of the product.
All models are made in 316 Stainless Steel, can be ordered with a great variety of threaded, flange, or hygienic fittings, are available with Halar or epoxy coatings and can operate at temperatures up to 100°C.
- Produtos Químico, Tratamento de Água
- Produtos Alimentares e Bebidas
- Saneamento Básico e Sistema de Combate de Incêndio
- Indústria Farmacêutica
- Designed for reliable limit level detection of a wide range of fluids, oils, paste-like materials, foam, fibers and solids (including plastic pellets) with either high or low densities or dielectric constants.
- Generates a high frequency sensing field which is immune to product adhesion, making it an ideal solu- tion for viscous or sticky media such as ketchup, yogurt, syrups, creams or pastes, tar like materials, alkalis, etc.
- An ideal replacement for other technologies such as vibrating forks, capacitive, ultrasonic or conductive level switches.
- Direct mounting into tanks, vessels, pipes or containers.
Fully configurable sensitivity adjustment using a simple magnet pen - Universal design for all types of fluids (electrically conductive and non-conductive) with a sensing tip made from PEEK or PTFE.
- High stability at high sensitivity (can be used in applications with substances with εr ≥ 1.5).
Aplicação: Monitorar e detectar Fluxo de liquidos Alimentação: DC: 24Vcc (± 10%)
Consumo: <1 00mA
Saída:Relé (1 SPDT) 5A – 250Vac / 4~20mA (3 fios)
Regulagem (set point): Líquidos: 3cm/s a 1m/s
Precisão: erro ± 10%
Tempo de resposta: 1 a 10s
Gradiente de temperatura:15°C/min
Indicação visual: Bargraph 8 led ́s
Cabeçote: Aluminio com Pintura
Conexão elétrica: Prensa-cabo de 1⁄2” NPT
Conexão ao processo: BSP , NPT, Flange ou Sanitária
Material do corpo: Aço Inox 316
Temperatura Ambiente: -10 a 70°C
Temperatura de trabalho: -10 a + 80°C (c/ prolongador p/ 120°C) Pressão máxima:100 Bar
Classe de proteção: IP66
- ATEX
- CE
- EAC/TR CU
- IECEx
- Inmetro
- SIL 2 (Surface Mount Electronics)
- SIL 2 (Through-Hole Electronics)
- SIL (TUV)
