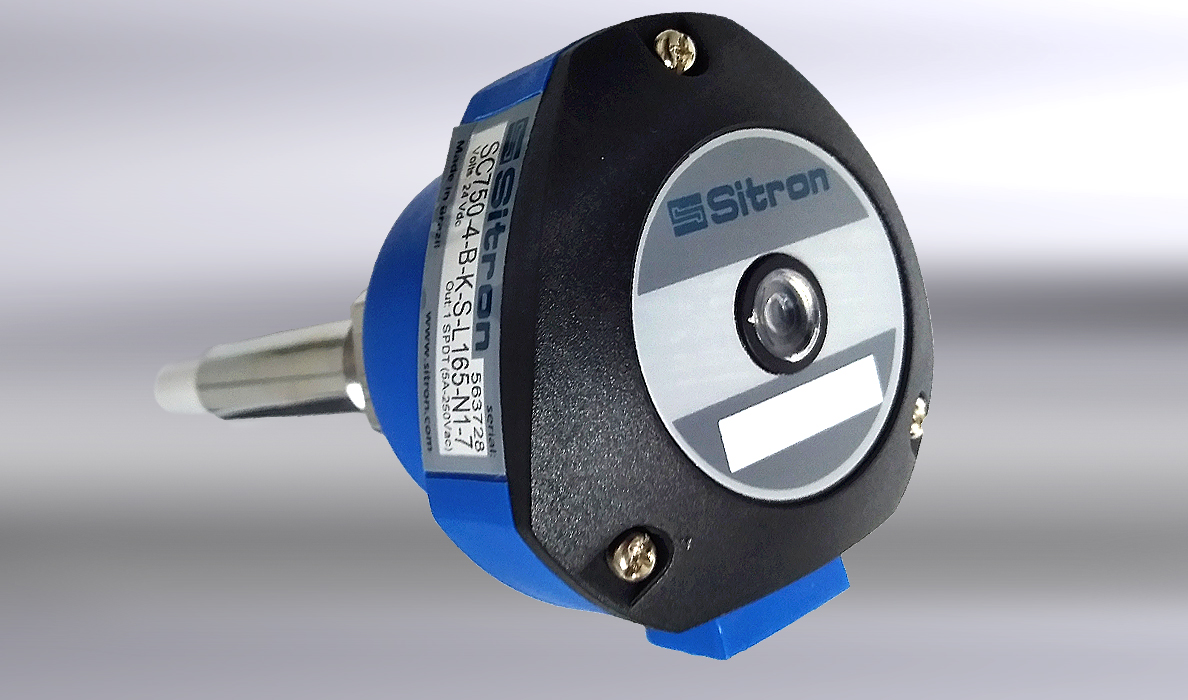

Capacitive Point Level Detection SC750
The SC750 Capacitance Level Switches are ideal for High/Low level detection for liquid, solids, granular materials and pastes. These units can also detect level without being in contact with the product through a sight glass. Unlike other capacitance probes, the SC750 Series can detect conductive, non-conductive or low dielectric materials with extremely accurate performance without requiring an external reference or installation in a metal vessel.
Available in, 24Vdc and 85…260Vac, with electronics incorporated in the housing, the SC750 is one of the most versatile and compact probes that exist. It has a relay output (SPDT), sensitivity adjustment and time delay (adjustable from 0.1 to 20 seconds), allowing it to be used in almost any type of product.

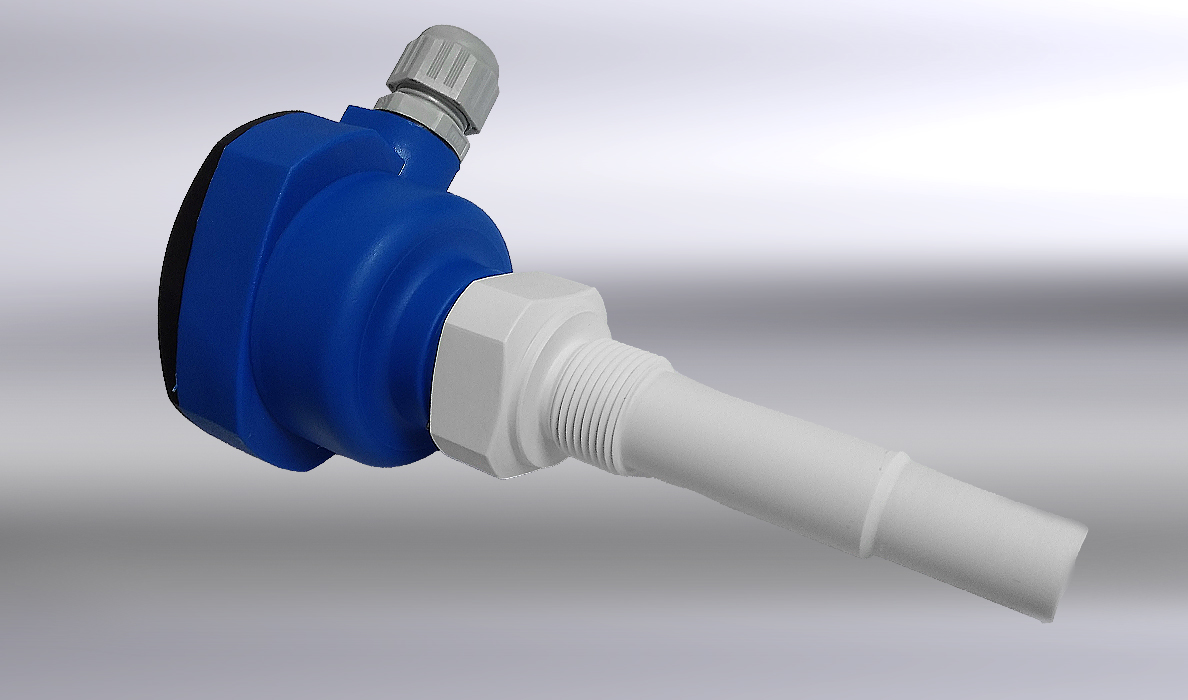

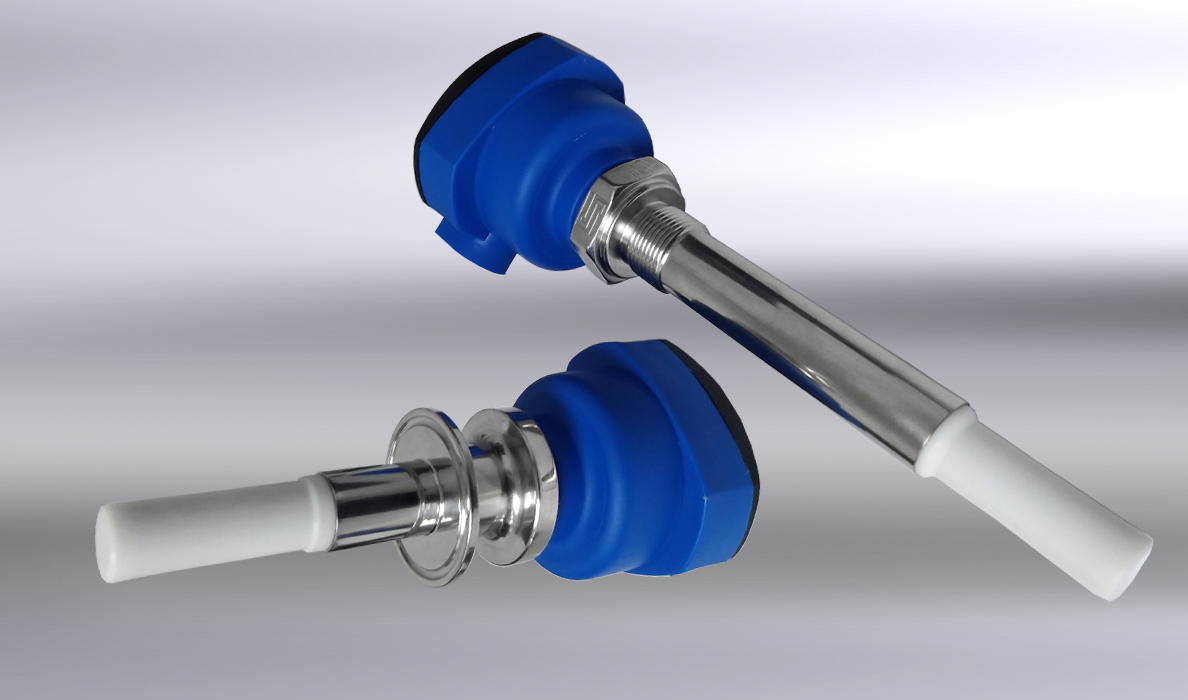

Available in rigid rod or cable. The SC750 ́s connection is made with 316 Stainless Steel and the sensor tip is made in PTFE. This model is also offered inawidevarietyof threaded,flangeorsanitaryconnections.
- Produtos Químico, Tratamento de Água
- Produtos Alimentares e Bebidas
- Saneamento Básico e Sistema de Combate de Incêndio
- Indústria Farmacêutica
- Designed for reliable limit level detection of a wide range of fluids, oils, paste-like materials, foam, fibers and solids (including plastic pellets) with either high or low densities or dielectric constants.
- Generates a high frequency sensing field which is immune to product adhesion, making it an ideal solu- tion for viscous or sticky media such as ketchup, yogurt, syrups, creams or pastes, tar like materials, alkalis, etc.
- An ideal replacement for other technologies such as vibrating forks, capacitive, ultrasonic or conductive level switches.
- Direct mounting into tanks, vessels, pipes or containers.
Fully configurable sensitivity adjustment using a simple magnet pen - Universal design for all types of fluids (electrically conductive and non-conductive) with a sensing tip made from PEEK or PTFE.
- High stability at high sensitivity (can be used in applications with substances with εr ≥ 1.5).
Aplicação: Monitorar e detectar Fluxo de liquidos Alimentação: DC: 24Vcc (± 10%)
Consumo: <1 00mA
Saída:Relé (1 SPDT) 5A – 250Vac / 4~20mA (3 fios)
Regulagem (set point): Líquidos: 3cm/s a 1m/s
Precisão: erro ± 10%
Tempo de resposta: 1 a 10s
Gradiente de temperatura:15°C/min
Indicação visual: Bargraph 8 led ́s
Cabeçote: Aluminio com Pintura
Conexão elétrica: Prensa-cabo de 1⁄2” NPT
Conexão ao processo: BSP , NPT, Flange ou Sanitária
Material do corpo: Aço Inox 316
Temperatura Ambiente: -10 a 70°C
Temperatura de trabalho: -10 a + 80°C (c/ prolongador p/ 120°C) Pressão máxima:100 Bar
Classe de proteção: IP66
- ATEX
- CE
- EAC/TR CU
- IECEx
- Inmetro
- SIL 2 (Surface Mount Electronics)
- SIL 2 (Through-Hole Electronics)
- SIL (TUV)
